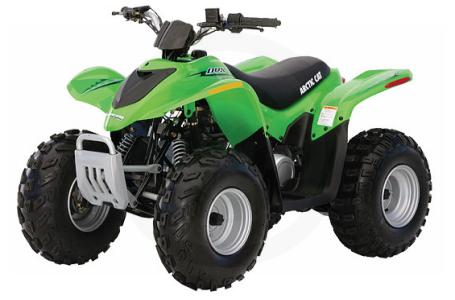

2006 Arctic Cat DVX 90 ATV

Only 1 Red Left!

Now until September 30, 2010
$300.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Model: DVX 90
  • Displacement (cc): 90
  • Engine Type: SOHC 4-stroke 2-valve
  • Bore & Stroke (mm): 47 x 51.8
  • Cooling System: Air
  • Transmission: Automatic CVT
  • Drive System: 2 WD
  • Overall Width (in): 34.5
  • Overall Height (in): 37.9
  • Overall Length (in): 57.75
  • Wheel Base (in): 38.4
  • Suspension Travel Front (in): 2.8
  • Suspension Travel Rear (in): 2.9
  • Ground Clearance (in): 7.3
  • Suspension Type: Front Single A-arm
  • Suspension Type: Rear Swing Arm
  • Front Brakes: Drum
  • Rear Service Brake: Hydraulic Disc
  • Tire Front: 20 x 7-8
  • Tire Rear: 19 x 8-8
  • Wheel Width - Front (in): 8 x 5.5
  • Wheel Width - Rear (in): 8 x 7
  • Max Fuel Capacity: 1.45 gal./5.5L
  • Dry Weight (lbs): 260

Specifications

Engine
Engine Type SOHC 4-stroke 2-valve
Displacement 90 cc
Bore x Stroke 47 x 51.8 mm
Cylinders 1
Engine Cooling Air
Chassis
Front Suspension Single A-arm
Front Travel 2.8 in.
Front Brake Type Drum
Front Tires 20 x 7-8
Rear Suspension Swing Arm
Rear Travel 2.9 in.
Rear Brake Type Hydraulic Disc
Rear Tires 19 x 8-8
Dimensions/Capacities
Dry Weight 260 lbs
Fuel Capacity 1.45 gal. / 5.5 l
Ground Clearance 7.3 in.
Wheelbase 38.4 in.
Drive Train
Drive Train 2 WD
Transmission Automatic CVT
General
Colors Red, Arctic Green

Compare Models

 Print








Year 2006
Manufacturer Arctic Cat
Model DVX 90 ATV
Style Sport
Chassis
Front Suspension Single A-arm
Front Travel 2.8 in.
Front Brake Type Drum
Front Tires 20 x 7-8
Rear Suspension Swing Arm
Rear Travel 2.9 in.
Rear Brake Type Hydraulic Disc
Rear Tires 19 x 8-8
Frame
Dimensions/Capacities
Dry Weight 260 lbs
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 1.45 gal. / 5.5 l
Ground Clearance 7.3 in.
Machine Dimensions (LxWxH)
Wheelbase 38.4 in.
Drive Train
Drive Train 2 WD
Final Drive
Transmission Automatic CVT
Engine
Engine Type SOHC 4-stroke 2-valve
Displacement 90 cc
Bore x Stroke 47 x 51.8 mm
Cylinders 1
Engine Cooling Air
Fuel System
Starting System
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Red, Arctic Green
